MP2S

Crimes/Accidents have unfortunately been a frequent occurrence throughout human history. With the emergence of structured societies, tremendous efforts have been put forth in order to minimize this frequency or prevent it altogether. However, the limited capabilities of humans to predict, attend to or prevent an incident has largely resulted in frustration amongst the public and lack of trust in security systems. We believe that complimenting human efforts with machine efficiency can enhance the effectiveness of current security systems and thereby increase the public’s trust in them.

Existing security systems are ineffective due to the constant human monitoring that needs to take place. This in turn compromises human safety since it requires some sort of human intervention to stop a possible crime event. Moreover, communication between different parties in order to finally attend to an incident scene is inefficient, hence automating this process enhances security tremendously.

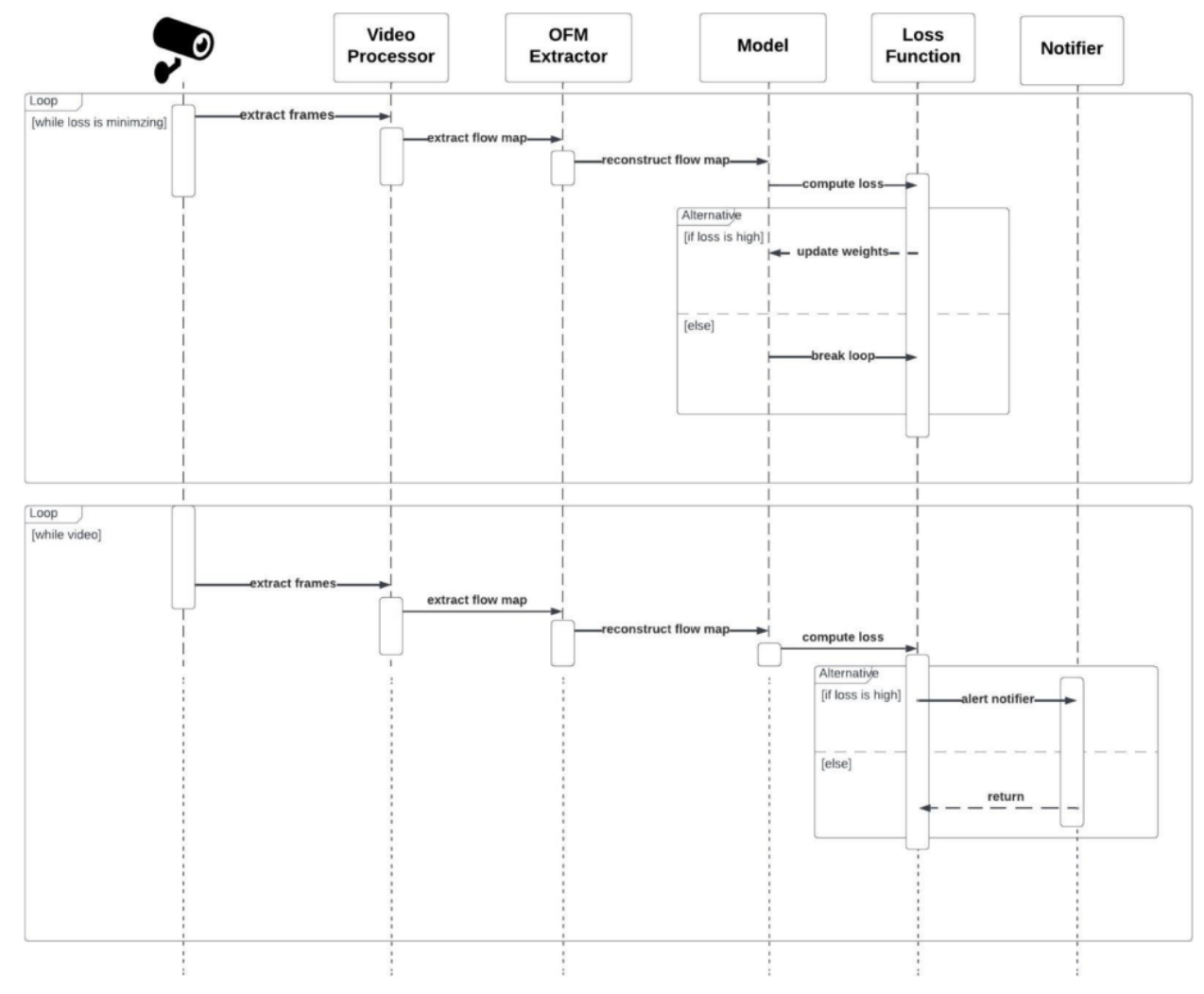

We propose a system that would learn to detect abnormal behavior from streams of video data by effectively learning normal data using motion in videos and later singling out any anomalies. Police stations could then be contacted once a situation is observed as dangerous. This can be achieved in the following steps:

• Extracting dense optical flow maps from videos.
• Feeding the extracted map and training a CAE on normal data to reconstruct the flow map.
• During inference, video frames with high reconstruction errors are regarded as abnormalities.
• Once a series of frames is flagged anomalous, a human observer is notified.
• After analyzing the situation, the human observer can hit the alert button (if the situation. calls for it) and the system connects all concerned bodies (eg. police officers) in a graph like structure and searches for nearby persons (by locating their coordinates). These nodes are then notified using their portable phones and can reach the incident location in due time.

For building this system, we utilize the concepts of optical flow and image reconstruction through convolutional autoencoders. First, for every image frame, we extract dense optical flow maps. We then train autoencoders to learn patterns of flow maps that represent normal motion. However, the autoencoders only learn the spatial patterns, but since videos have another dimension, namely temporal dimension, we make use of convolutional LSTMs in order to learn the temporal patterns.

Once the model is trained, it can be used to detect anomalies in videos by flagging the frames with higher reconstruction errors since that infers that such motion is abnormal to the pattern learnt by the model i.e motion pattern occurring in normal videos. Once an anomaly is observed, the human observer can be notified to either alert concerned departments or ignore the signal if the motion is regarded as normal. If immediate action needs to take place, the system automatically notifies the cell phones of concerned persons which are closest to the accident location. To do this, the system places all concerned bodies in a graph-like structure similar to structures used in networking platforms such as Facebook and Linkedin. This eases and automates the process of searching for closeby people and calling for assistance. Connection between nodes is decided based on the proximity to the accident location. The location of each police officer/vehicle is tracked using their cell phones on Google Maps. Once the nearest officers are determined, their phones are notified through an app installed on every officer’s cell phone. The graph structure between nodes will be computed on the fly once an alert has been issued. This is in order to reduce the complexity and calculation required to track every moving node during a time of inactivity.

Project code can be found here: MP2S Implementation
